Xiaomi Smart Intelligent Laser Measure User Manual 36764

1.Description:

Xiaomi Mijia Smart La-ser Measure Digital Diastimeter Real-time range area/volume/length calculation High-precision rangefinder Portable Infrared Measuring Instrument

2.Features:

Real-time rangefinding, you can measure wherever you are.

±3 mm measurement accuracy, high-precision portable rangefinder.

Area/volume/length calculation, supports smart measurement via the Mijia app.

One-button control with 1.23-inch LCD screen, easy to use.

Automatically shuts off if no operation is performed on the product within 180 seconds.

3.Specification:

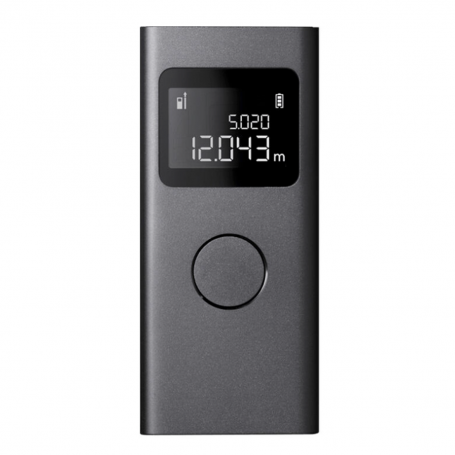

Item name: Mi Smart Laser Measure

Model: MJJGCJYD001QW

Measuring range: 0.05-40 m

Measuring accuracy: ±3 mm

Minimum display unit: 0.001 m

BT transmission distance: approx. 8 m (without obstacles)

Charging port: Type-C

Battery capacity: 370 mAh

Automatic power-off after no operation for 180s

Size: 80*35*21 mm

Weight: approx. 60 g

4.Remarks:

This product uses the back-end benchmark by default. Double-click to switch between the front benchmark and the back-end benchmark.

The default unit of measurement for this product is m. If you need to switch to ft, please configure it in the Mijia app.

There is a slight difference depending on the manual measurement.

Actual use may vary slightly depending on the specific situation.
